类型：单色TFT
显示像素：320x240
外形尺寸(mm) ：159.2x111.0x6.7
VA尺寸(mm)：5.7
AA尺寸(mm) ：5.7
点间距mm：0.36x0.36
有效尺寸mm：115.2x86.16
应用：户外仪器仪表
视角：6H
背光/亮度：500cd/m2
引脚：20pin
接口方式：MCU
特殊说明：抗静电ESD 8KV
工作温度：-20~70℃
供电电压：3.3V
驱动芯片：ST7511

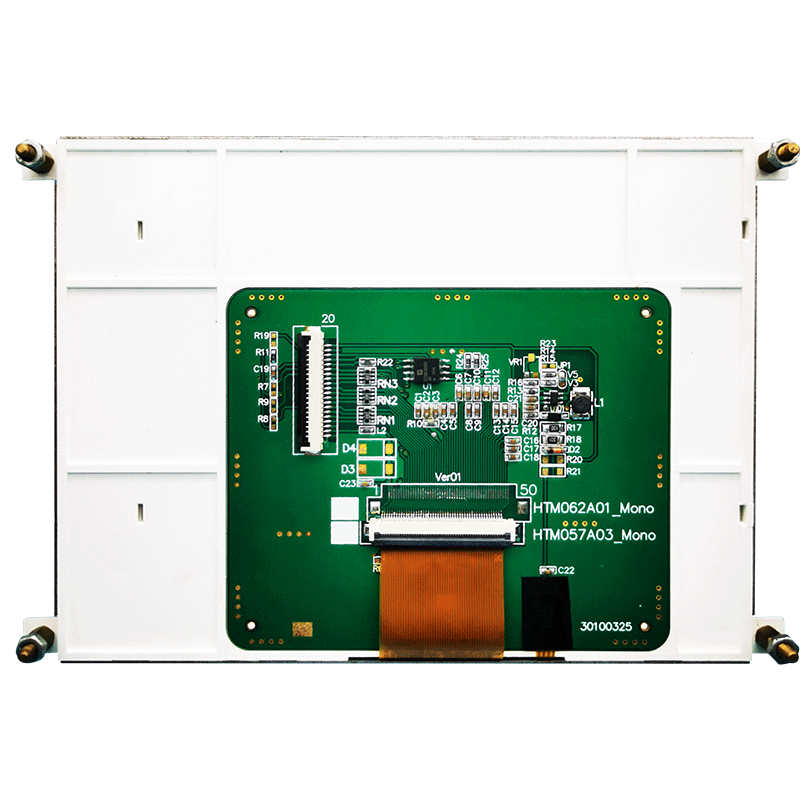

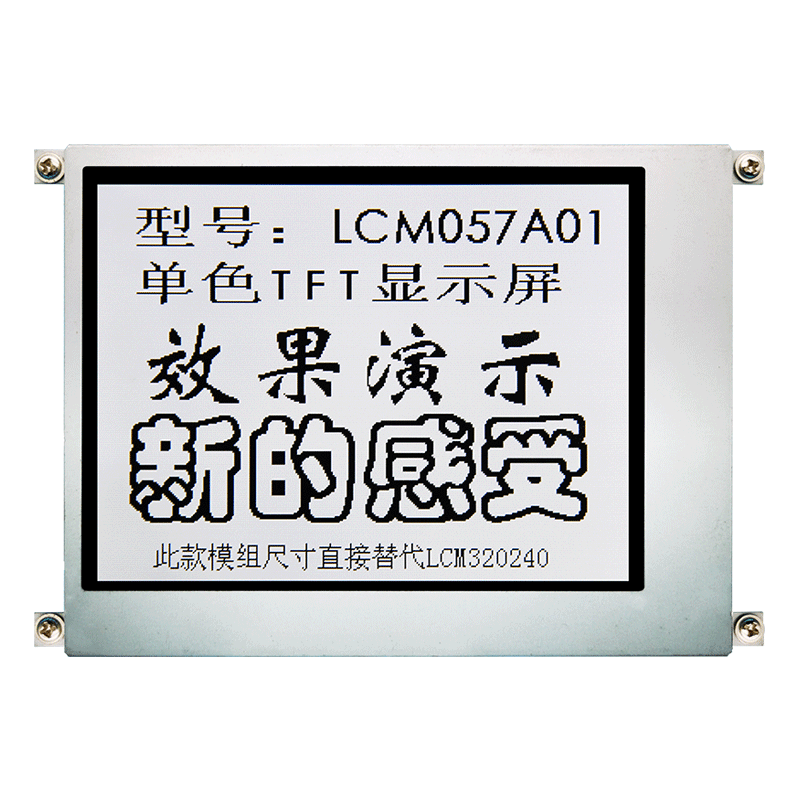

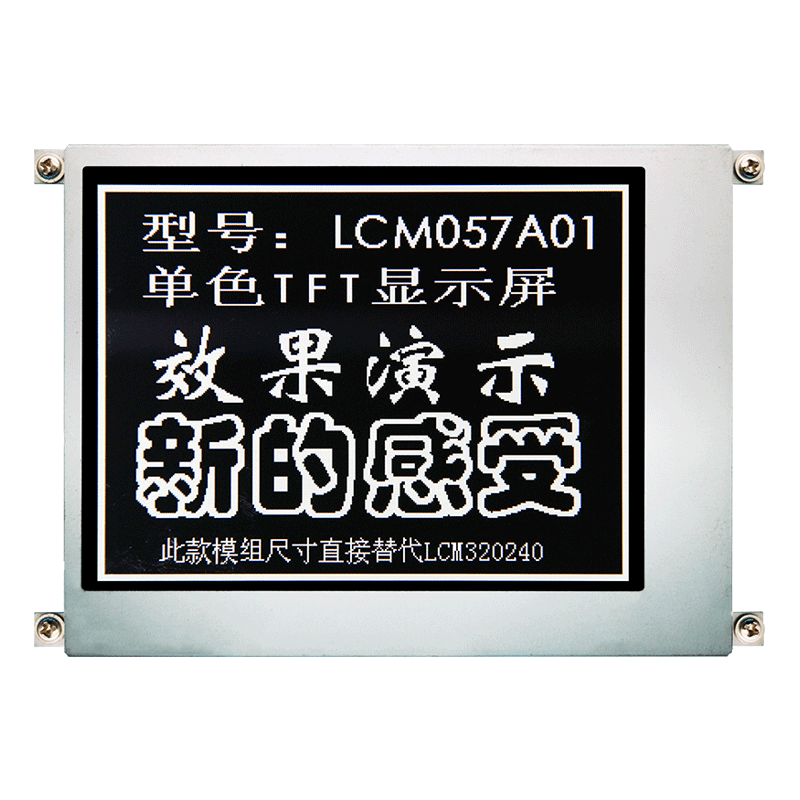

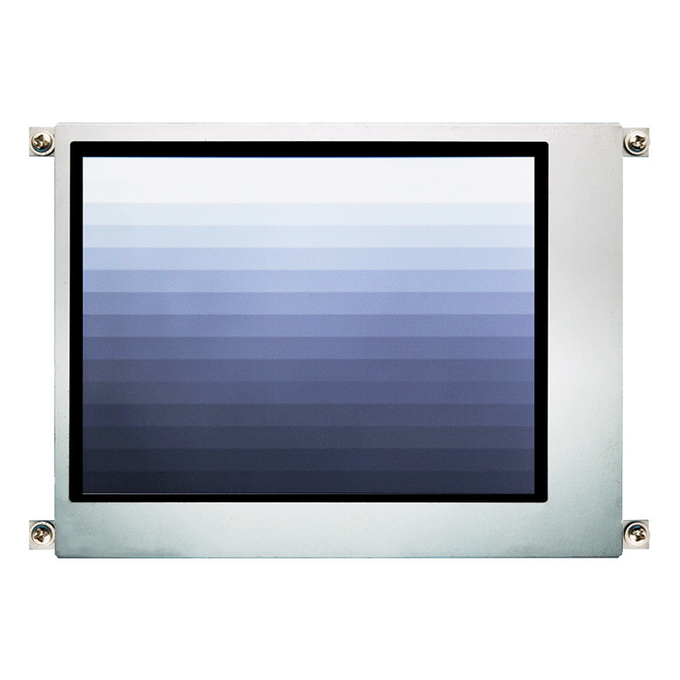

隆重推出我们专为工业仪表应用而设计的高品质专业单色 TFT 显示屏。 我们的 5.7 英寸显示屏分辨率为 320x240，有效尺寸为 115.2x86.16mm，可提供清晰准确的数据可视化表示。
我们的单色 TFT 显示屏采用优质材料制成，尺寸为 159.2x111.0x6.7mm，是工业仪表应用的理想尺寸。 5.7" 视场窗口尺寸确保最大可见度，6H 视角保证从多个角度准确观看。
我们的单色 TFT 显示屏配备强大的 500cd/m2 背光，即使在明亮的阳光下也能提供出色的可视性。 该显示器采用 20PIN1.0 连接方式，工作电压为 3.3V，可轻松集成到您的系统中。
显示器的接口方式采用MCU，采用ST7511驱动芯片型号供电，保证快速高效的处理。 我们的单色TFT显示屏的工作温度范围为-20~70度，适合在各种环境下使用。
虽然我们的单色 TFT 显示器是专业的且成本高，但其独特的功能和卓越的品质使其成为准确度和精确度至关重要的工业仪器应用的理想选择。
General Feature
| Item | Standard Value | Unit | ||
| Display Size | 5.7 | Inch | ||
| Number of Pixels | 320(H)* 240(V) | dots | ||
| Active Area | 115.2x86.16mm | mm | ||
| Outline Dimension | 159.2x111.0x6.7 | mm | ||
| Viewing Direction | FULL O'clock | - | ||
| Interface | MCU | - | ||
| Driver IC | ST7511 | - | ||
| Driver Condition | VCI=3.3V(Typ) | V | ||
| Backlight | - | - | ||
| Touch Panel | WHITOUT TOUCH | |||
| CTP Driver IC | - | - | ||
| Driver Condition | VDD=3.3 | V | ||
| TFT Operation AT | -20 ～ +70 | ℃ | ||
| TFT Storage AT | -30 ～ +80 | ℃ | ||
Dot Size | 0.34x0.34 | mm | ||
Dot Pitch | 0.36x0.36 | mm | ||
TFT Pin Description
| No | Pin Name | Descriptions |
| 1 | VSS | Power Supply(0V) |
| 2 | VDD | Power Supply(3.3V) |
| 3 | NC | |
| 4 | RS | Data/Comman Identification Pin |
| 5 | /WR | Read/Write Signal |
| 6 | /RD | Data Read Signal |
| 7 | DB0 | Data Bus Line(DB0-DB7) DB6 as Serial SCK Input For ZK DB7 as Serial Data Input For ZK |
| : | : | |
| 13 | DB6 | |
| 14 | DB7 | |
| 15 | /CS | Chip Select Input Pin For LCD |
| 16 | /REST | Reset Signal |
| 17 | CS# | Chip Select Input Pin For ZK |
| 18 | SO | Serial Data Output For ZK |
| 19 | FGND | Equipment GND |
| 20 | LEDA | Backlight Enable Pin(H:Open) |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

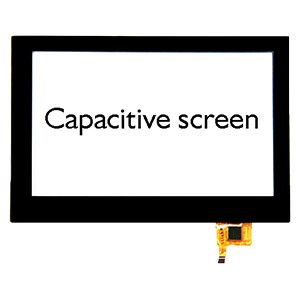

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
