产品搜寻

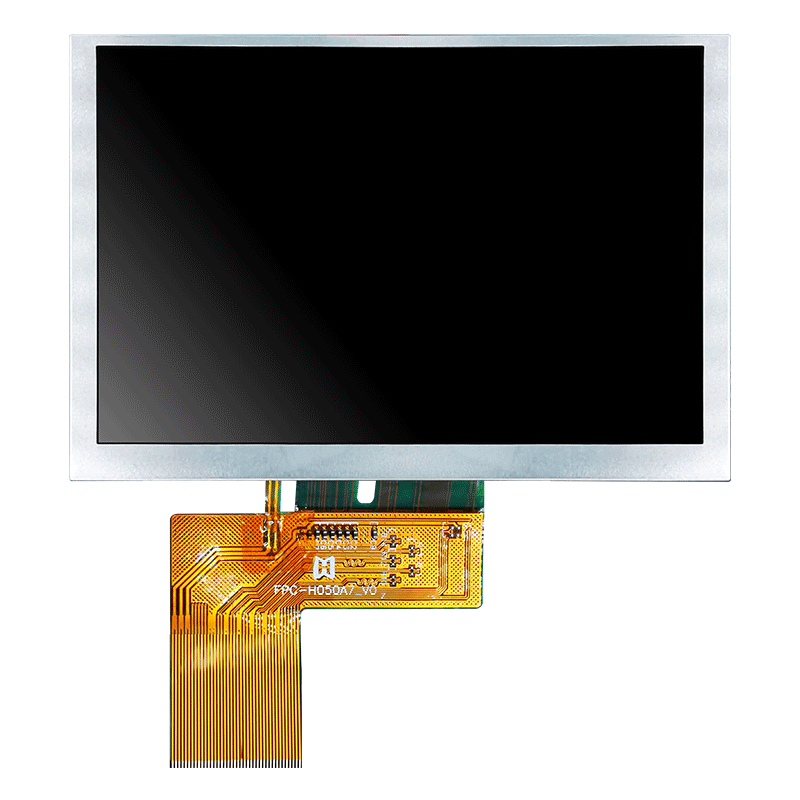

类型：TFT横屏
显示像素：800x480

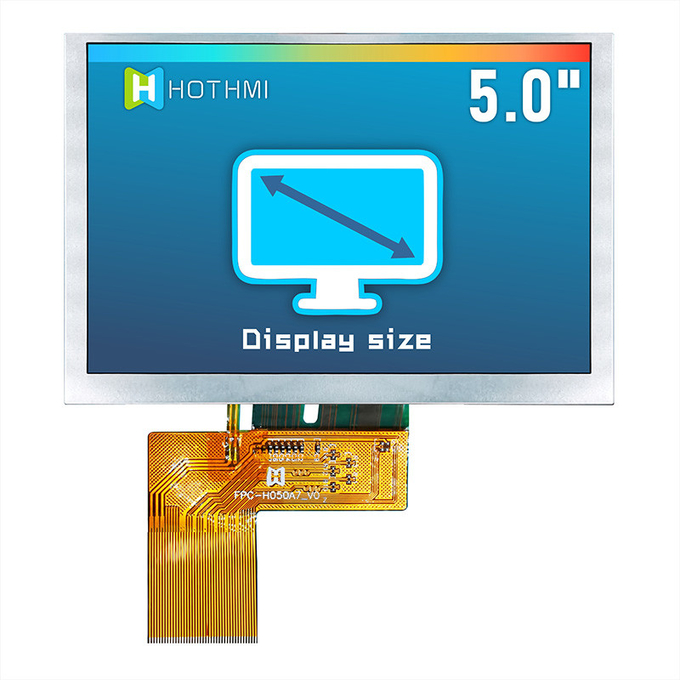

外形尺寸(mm) ：120.70x75.80x2.90
VA尺寸(mm)：5.0
AA尺寸(mm) ：5.0
有效尺寸mm：108.00x64.80
应用：车载，医疗，工控
视角：全视角
背光/亮度：1000cd/m2
引脚：40pin

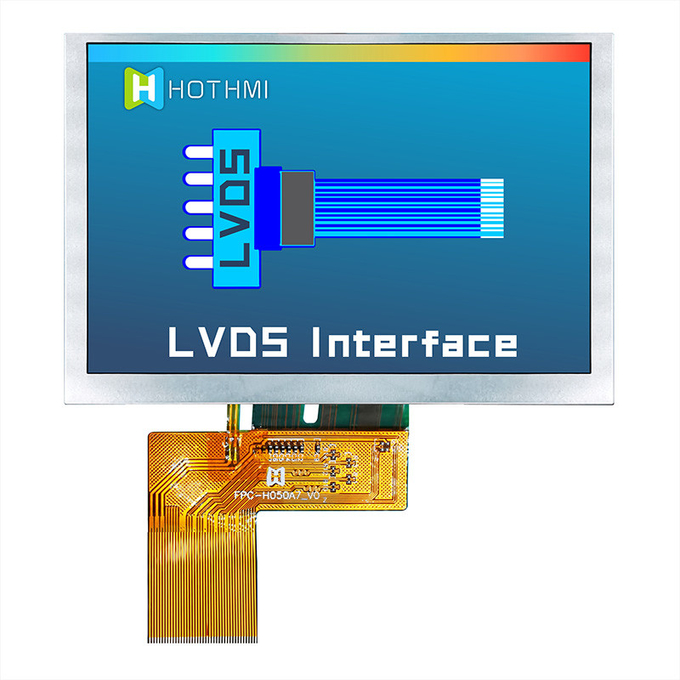

接口方式：LVDS
特殊说明：抗静电ESD 8KV

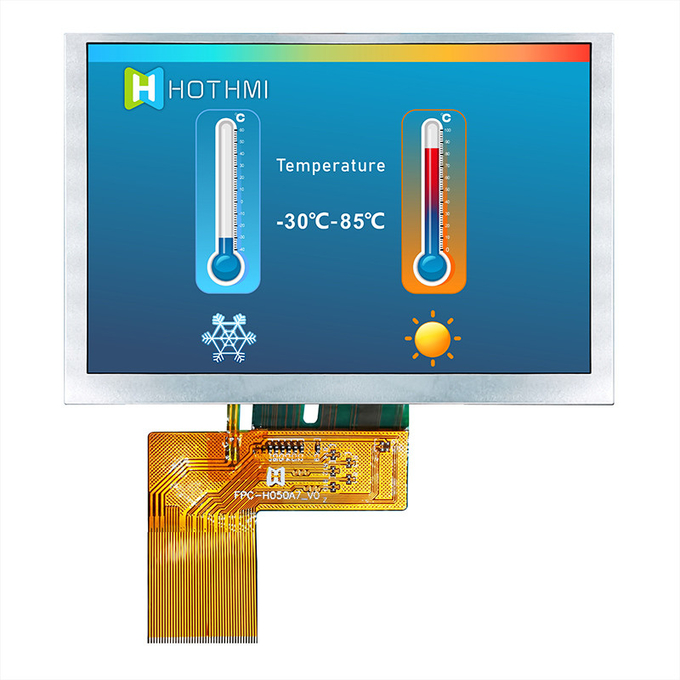

工作温度：-30~85℃
供电电压：3.3V

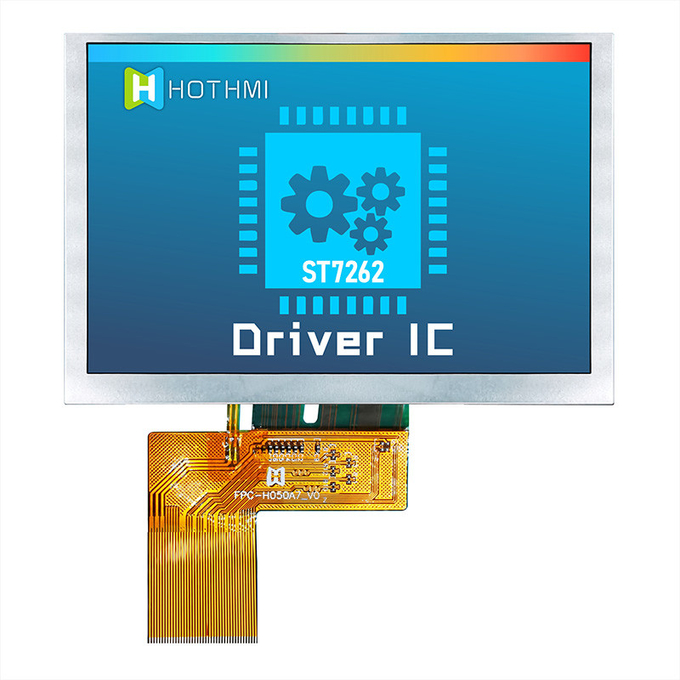

驱动芯片：ST7262
隆重推出 TFT-H050A7SVISTKN40，这是一款来自值得信赖的 TFT LCD 显示器制造商的高品质 5.0 英寸 IPS LCD 显示器。 该显示器具有令人印象深刻的 800x480 分辨率，可提供清晰而生动的视觉效果，一定会增强任何项目。
但这款显示器的与众不同之处在于它能够在 -30℃ 至 85℃ 的广泛温度范围内使用。 无论您是在严寒还是酷热的环境中工作，这款显示器都将保持可靠和实用。
由于采用了阳光下可读技术，即使在阳光直射下也能轻松查看该显示屏，是户外应用的完美选择。
凭借其耐用的结构和一流的性能，TFT-H050A7SVISTKN40 是任何要求最好的项目的完美显示解决方案。
General Feature
Item | Standard Value | Unit | ||
Display Size | 5.0 | Inch | ||
Number of Pixels | 800(H)*3(RGB)* 480(V) | dots | ||
Active Area | 108.00x64.80mm | mm | ||
Outline Dimension | 120.70x75.80x2.90 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | LVDS 3 Lane/4 Lane | - | ||
Driver IC | ST7262 | - | ||
Driver Condition | VCI=3.3V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=3.3 | V | ||
TFT Operation AT | -30 ～ +85 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 ~ 2 | LEDA | LED anode |
| 3 ~ 4 | LEDK | LED cathode |
| 5 ~ 6 | VCI | 3.3V power supply |
| 7 | NC | Not connected |
| 8 | MODE | Sets LVDS data format |
| 9 | LENS | Sets LVDS lane |
10 |
SHLR | Horizontal scanning direction control pin (L: from right to left ; H: from left to right) |
11 |
UPDN | Vertical scanning direction control pin (L: from down to up ; H: from up to down ) |
| 12 ~ 14 | GND | Power supply ground |
| 15 | DCKN | LVDS Negative clock signal (-) |
| 16 | DCKP | LVDS Positive clock signal (+) |
| 17 ~ 18 | GND | Power supply ground |
| 19 | D3N | LVDS Negative data signal (-) |
| 20 | D3P | LVDS Positive data signal (+) |
| 20 | D3P | LVDS Positive data signal (+) |
