类型：TFT横屏

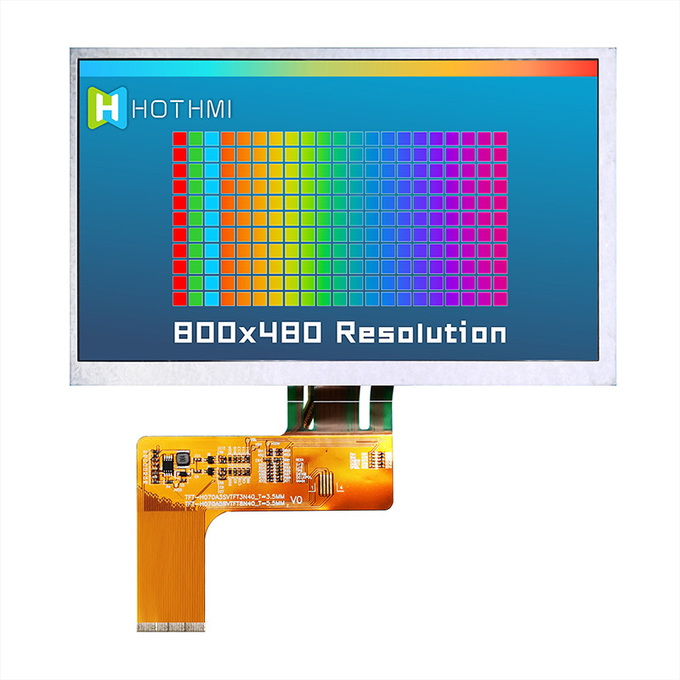

显示像素：800x480

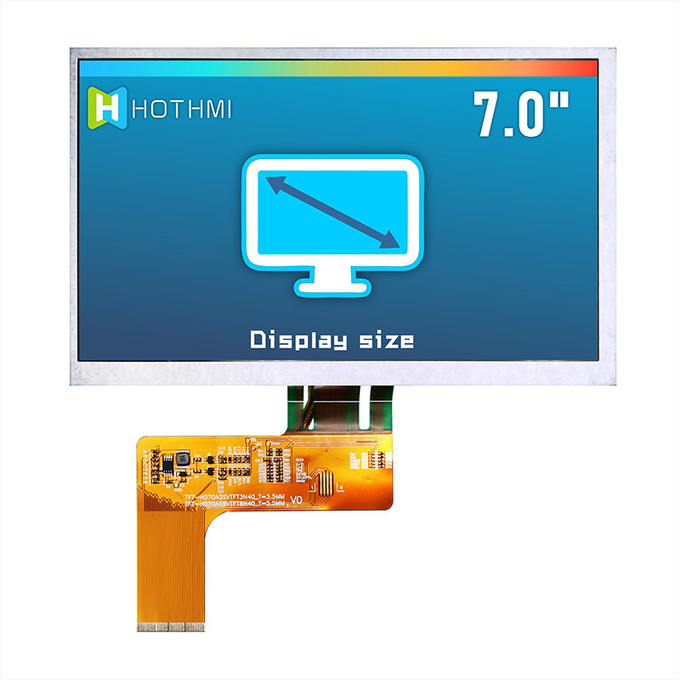

外形尺寸(mm) ：164.90×100.00×3.50
VA尺寸(mm)：7.0
AA尺寸(mm) ：7.0
有效尺寸mm：153.84x85.632
应用：家电，车载显示

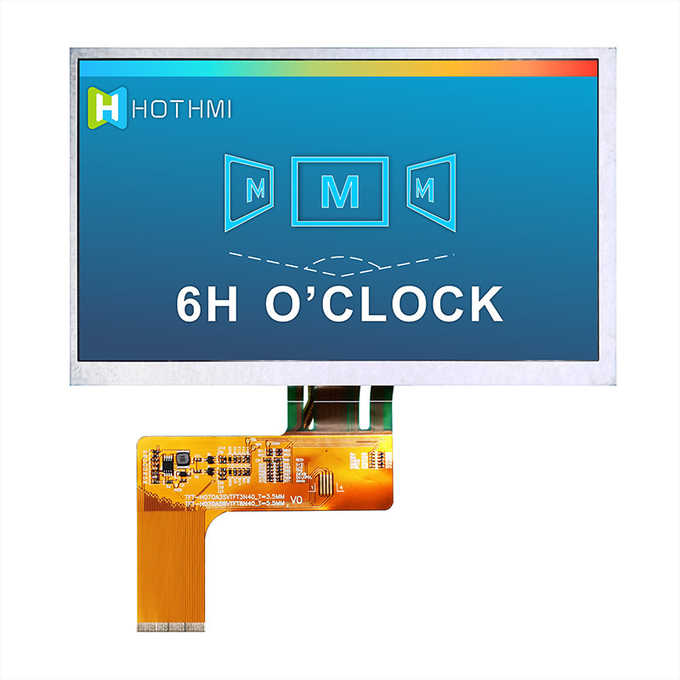

视角：6H

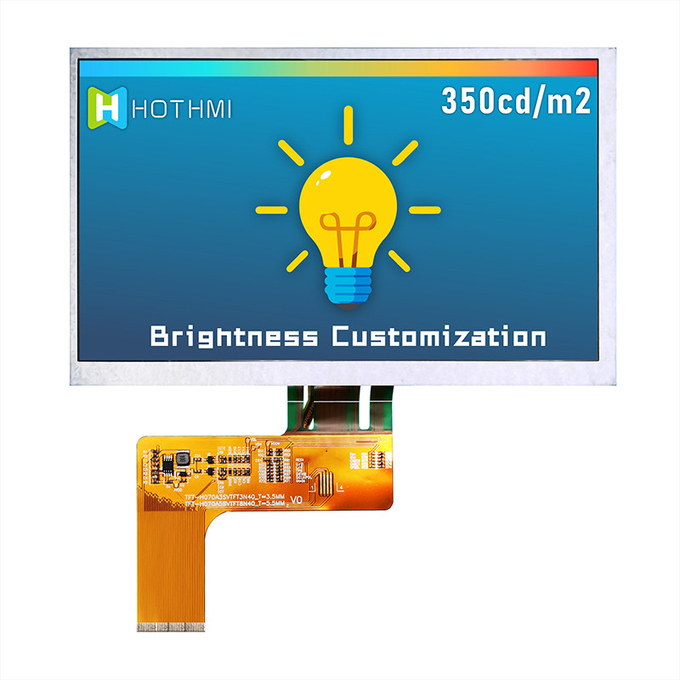

背光/亮度：350cd/m2
引脚：40pin

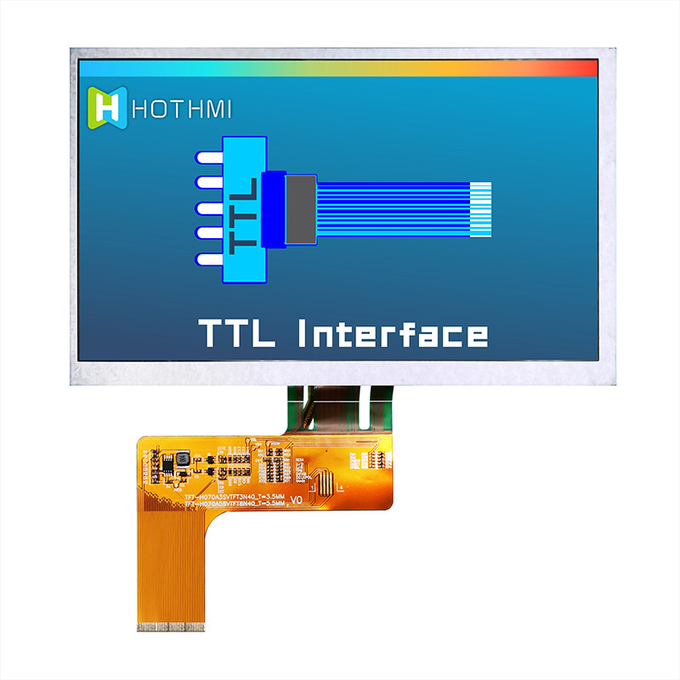

接口方式：TTL

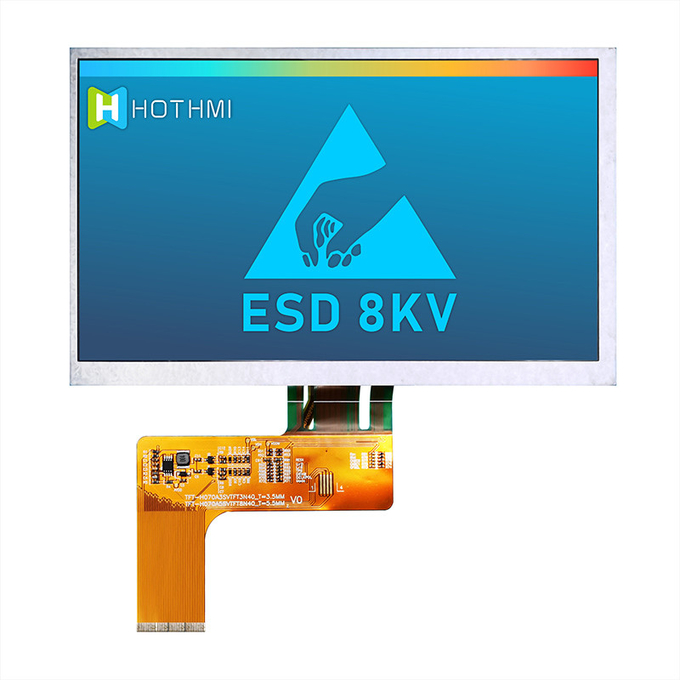

特殊说明：抗静电ESD 8KV

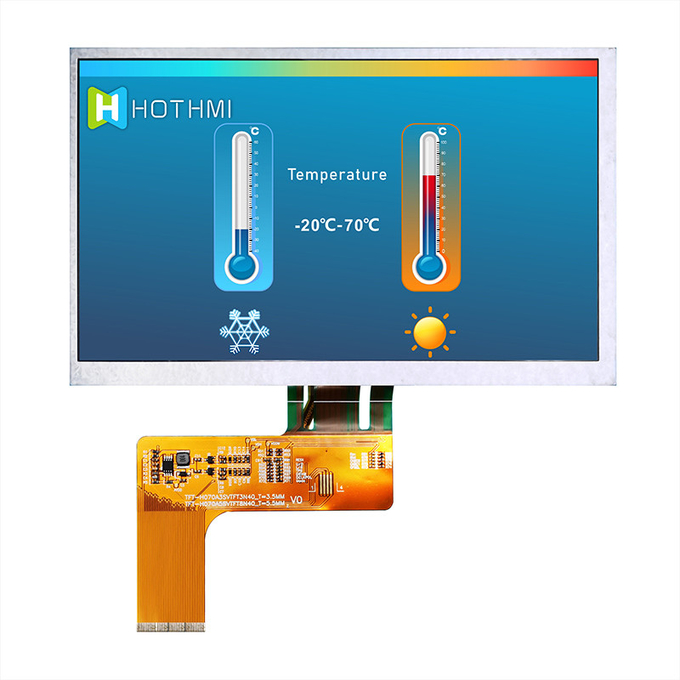

工作温度：-20~70℃
供电电压：3.3V

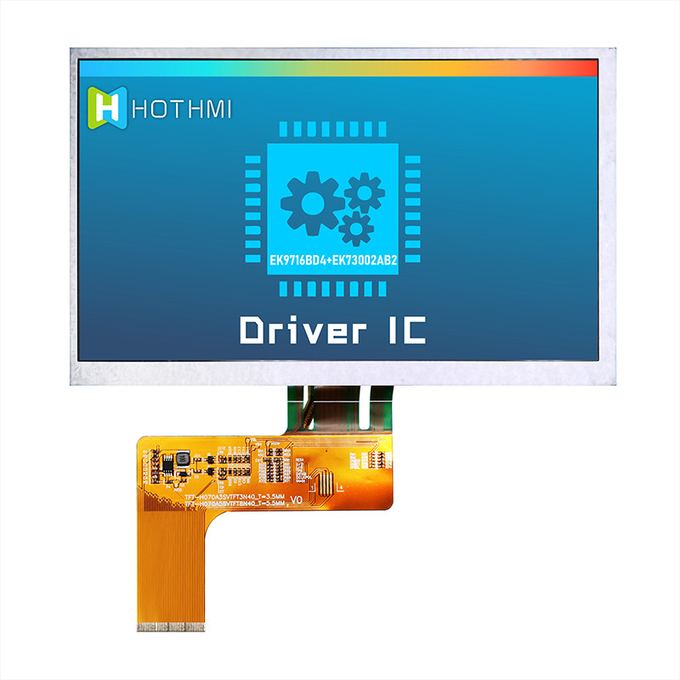

驱动芯片：EK9716BD4+EK73002AB2

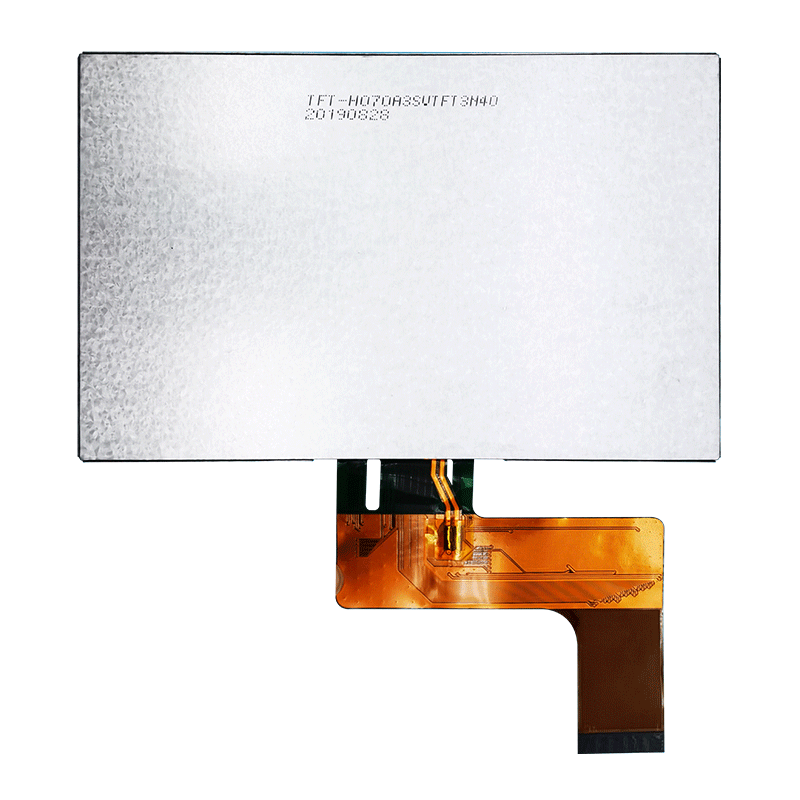

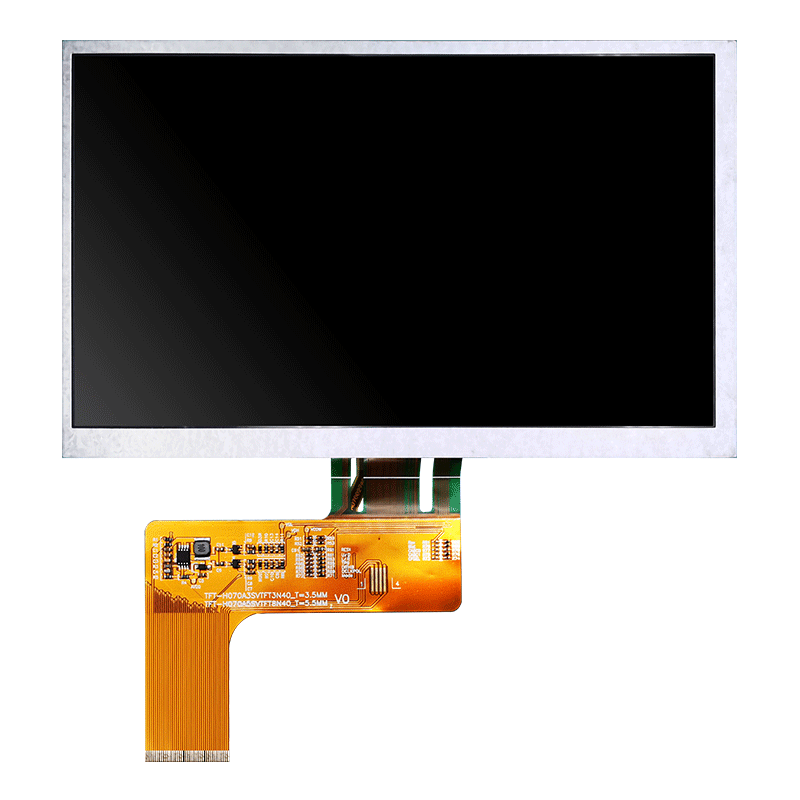

7.0英寸 800x480 TFT LCD 显示屏 TTL接口 EK9716BD4+EK73002AB2
隆重推出TFT-H070A3SVTFT3N40- 一款可靠的 7.0 英寸 LCD 显示器，具有 800x480 像素分辨率，专为工业控制应用而设计。
这款 TFT 显示器采用耐用的构造和先进的驱动芯片技术，是任何工业控制系统的强大补充。 驱动芯片EK9716BD4+EK73002AB2
确保与各种控制系统的无缝兼容，使其易于集成到现有设置中。
显示器的高分辨率和鲜艳的色彩输出提供了清晰生动的观看体验，使用户能够轻松监控关键数据并做出明智的决定。
无论您是构建新的控制系统还是升级现有控制系统，TFT-H080A5HDIFT6N40 都是需要高性能和耐用性的工业应用的完美选择。
General information
| Item | Specification | Unit | |
| Outline Dimension | 164.90×100.00×3.50mm | mm | |
| Display area | 153.84x85.632mm | mm | |
| Number of Pixel | 800(H) x 480(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | EK9716BD4+EK73002AB2 | W |
| B/L System | - | W | |
TFT Pin Description
| Pin NO | Symbol | Description |
| 1 | LED K | LED Cathode |
| 2 | LED A | LED Anode(+9.6V/ 120mA) |
| 3 | GND | Ground |
| 4 | VDD | Analog Power(2.5 ~ 3.6 V) |
| 5- 12 | DR0-DR7 | Red data bus |
| 13-20 | DG0-DG7 | Green data bus |
| 21-28 | DB0-DB7 | Blue data bus |
| 29 | GND | Ground |
| 30 | PCLK | Clock signal for data latching |
| 31 | STBYB | Display on/off mode control |
| 32 | HSD | Horizontal sync input with negative polarity |
| 33 | VSD | Vertical sync input with negative polarity |
| 34 | DE | Input data enable control / no connection |
| 35 | NC | No Connect |
| 36 | GND | Ground |
| 37 | NC | No Connect |
| 38 | NC | No Connect |
| 39 | NC | No Connect |
| 40 | NC | No Connect |
