类型：TFT横屏
显示像素：1280x800
外形尺寸(mm) ：229.10x148.90x4.35
VA尺寸(mm)：10.1
AA尺寸(mm) ：10.1
有效尺寸mm：216.96x135.60
应用：车载，医疗，工控

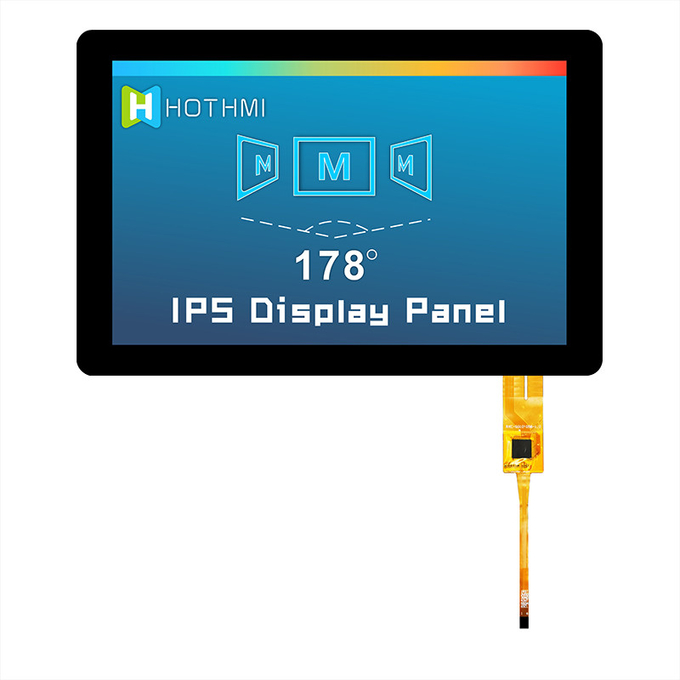

视角：全视角
背光/亮度：800cd/m2
引脚：40pin

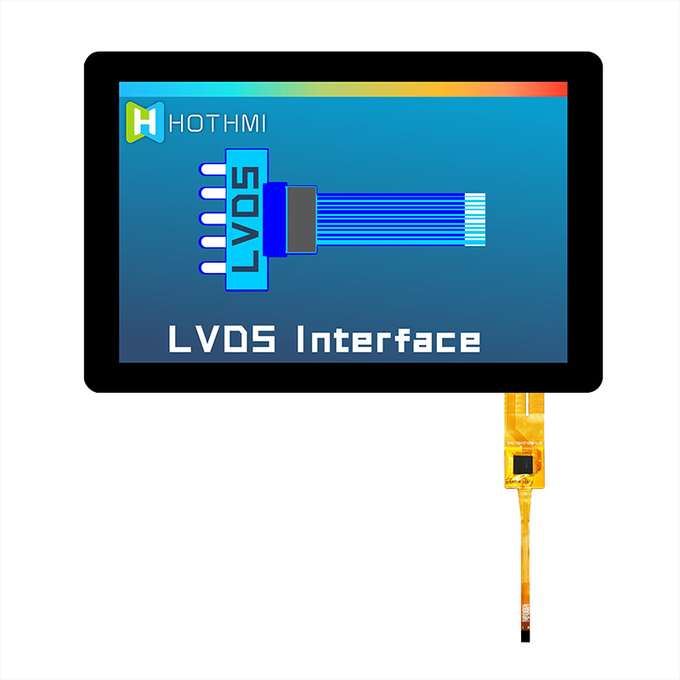

接口方式：LVDS

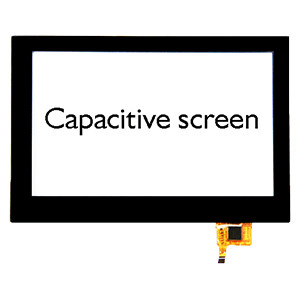

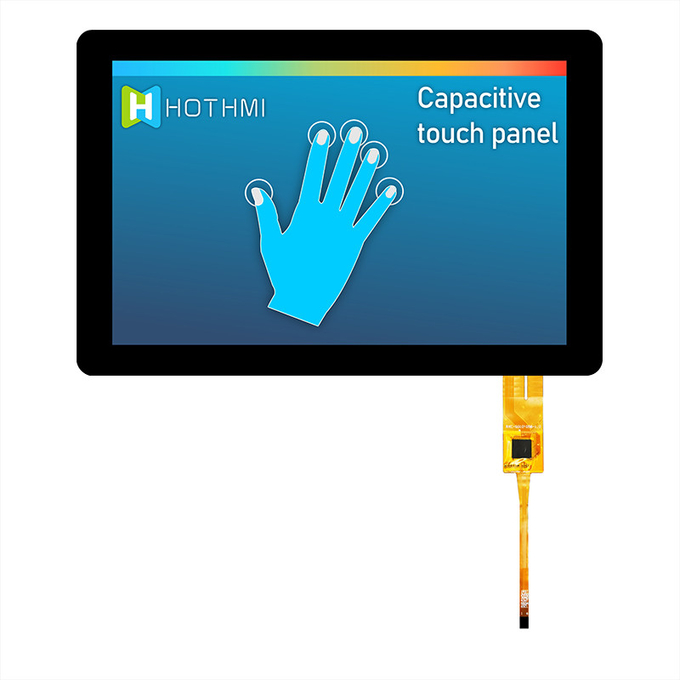

特殊说明：带电容触控功能

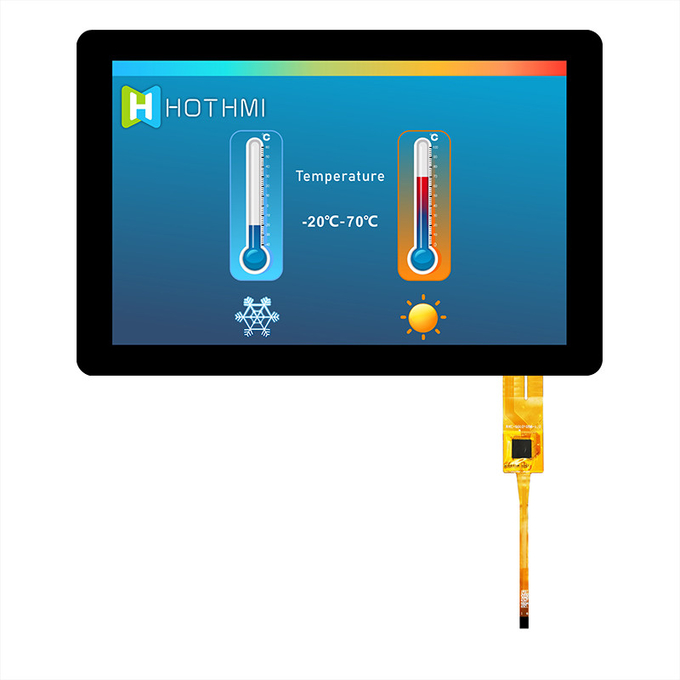

工作温度：-20~70℃
供电电压：3.3V
驱动芯片：EK79202B1

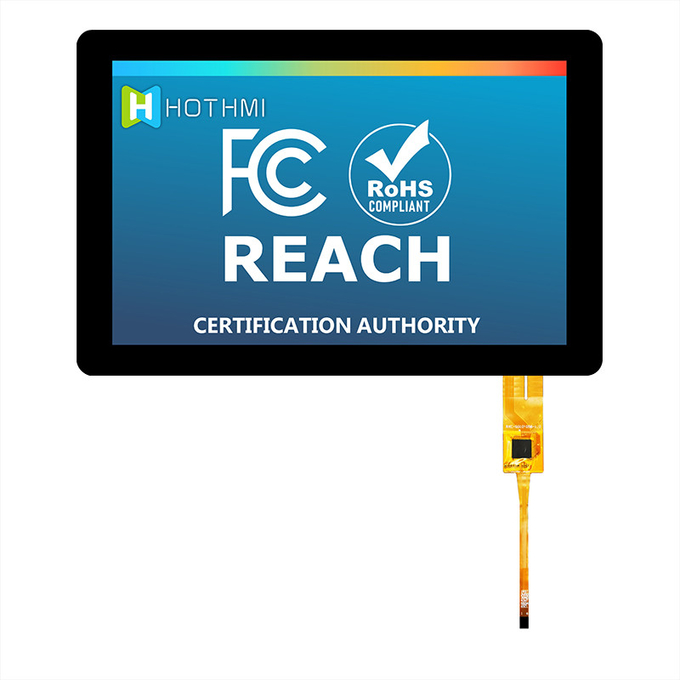

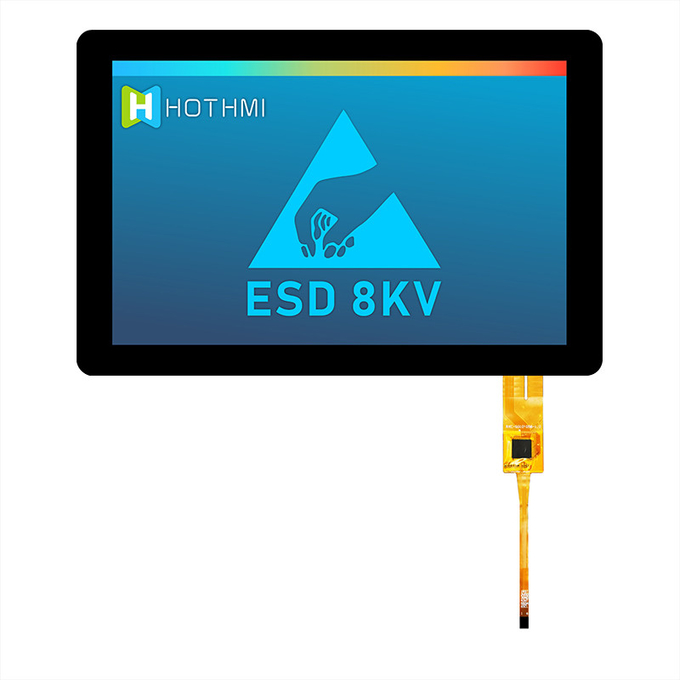

10.1寸IPS电容TFT显示屏带LVDS接口阳光下可读/TFT-H101A10WXIFT8C40
TFT-H101A10WXIFT8C40-LVDS-CTP | 10.1" IPS LCD | LVDS 接口 | 电容式触摸屏 | EMI 滤波器
这款 10.1 英寸 TFT LCD 显示屏具有采用 IPS 技术的 1280x800 分辨率屏幕，可在任何角度提供阳光下可读的亮度、更好的色彩再现、更好的图像一致性和更好的光学特性。 为了提供额外保护，这款 24 位真彩色 TFT 在输入电源线上还包括一个 EMI 滤波器。 这款 10.1" 显示器符合 RoHS 标准，采用 LVDS 接口，并具有电容式触摸屏。这款 10.1" IPS 显示器采用相同的机械尺寸和引脚排列设计，包括与 TN 显示器相同的 EK79202B1 驱动器 IC，使其成为兼容的替代选项 对于 TN 模型。
General Feature
| Item | Standard Value | Unit | ||
| Display Size | 10.1 | Inch | ||
| Number of Pixels | 1280(H)*3(RGB)* 800(V) | dots | ||
| Active Area | 216.96(H)* 135.60(V) | mm | ||
| Outline Dimension | 229.10(H) * 148.90(V) * 4.35(D) | mm | ||
| Viewing Direction | FULL O'clock | - | ||
| Interface | LVDS | - | ||
| Driver IC | EK79202B1 | - | ||
| Driver Condition | VCI=3.3V(Typ) | V | ||
| Backlight | - | - | ||
| Touch Panel | WHITOUT TOUCH | |||
| CTP Driver IC | - | - | ||
| Driver Condition | VDD=3.3V | V | ||
| TFT Operation AT | -20 ～ +70 | ℃ | ||
| TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | NC | Don't connect |
| 2~3 | VCI | Digital Power |
| 4 | NC | Don't connect |
| 5 | RESX | TFT Reset Pin.low in reset state |
| 6 | STBYB | Standby mode mode control. STBYB = ″VCI″normal operation;STBYB = ″GND″Standby mod |
| 7 | GND | Ground |
| 8 | D0N | LVDS data input pins |
| 9 | D0P | LVDS data input pins |
| 10 | GND | Ground |
| 11 | D1N | LVDS data input pins |
| 12 | D1P | LVDS data input pins |
| 13 | GND | Ground |
| 14 | D2N | LVDS data input pins |
| 15 | D2P | LVDS data input pins |
| 16 | GND | Ground |
| 17 | DCKN | LVDS clock input pins. |
| 18 | DCKP | LVDS clock input pins. |
| 19 | GND | Ground |
| 20 | D3N | LVDS data input pins |
| 21 | D3P | LVDS data input pins |
| 22 | GND | Ground |
| 23~24 | NC | Don't connect |
| 25 | GND | Ground |
| 26~27 | NC | Don't connect |
| 28 | HSD | 18-bit / 24-bit input select. HSD=″VCI″ 24 bit ; HSD=″GND″ 18 bit |
| 29 | NC | Don't connect |
| 30 | GND | Ground |
| 31~32 | LEDK | LED Cathode |
| 33~38 | NC | Don't connect |
| 39~40 | LEDA | LED Anode |
